Professional Zero Turn Mowers

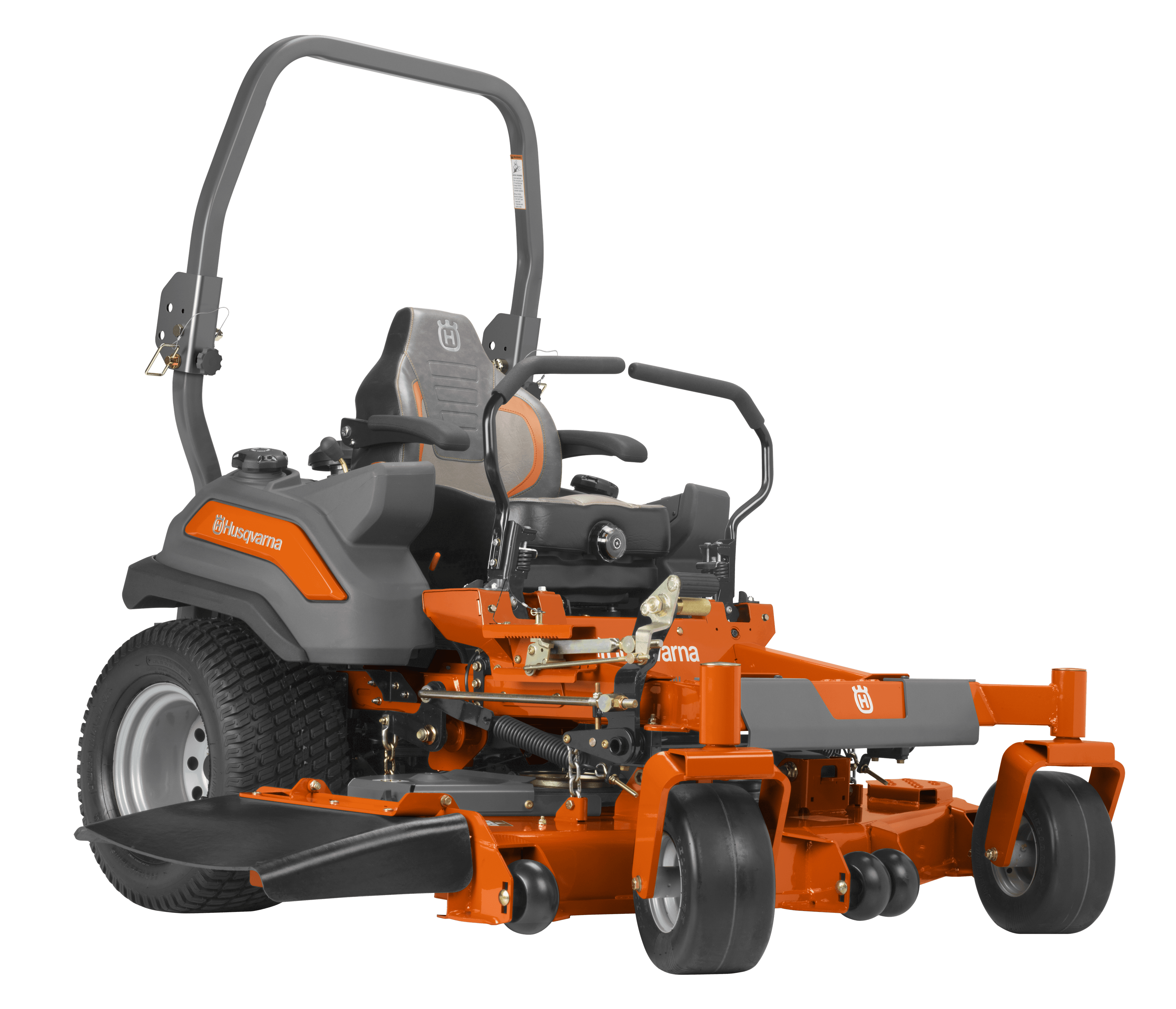

Z560X

$22,999.00Rec. retail price incl. GST SKU: 967669703
  • Cutting width152 cm
  • Engine nameFX Series

Product description

The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures a long & durable service life in commercial mowing applications. Careful design consideration provides unprecedented ease in serviceability.

5-year warrantyFinance options

Product Information

Features (12)

The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low. image

LED fuel gauge

Automotive style LED fuel gauge

The patent pending parking brake system automatically activates or deactivates as the steering levers are moved outward or inward. (Z560X with optional dust boots shown) image

Automatic parking brake

Automatic parking brake

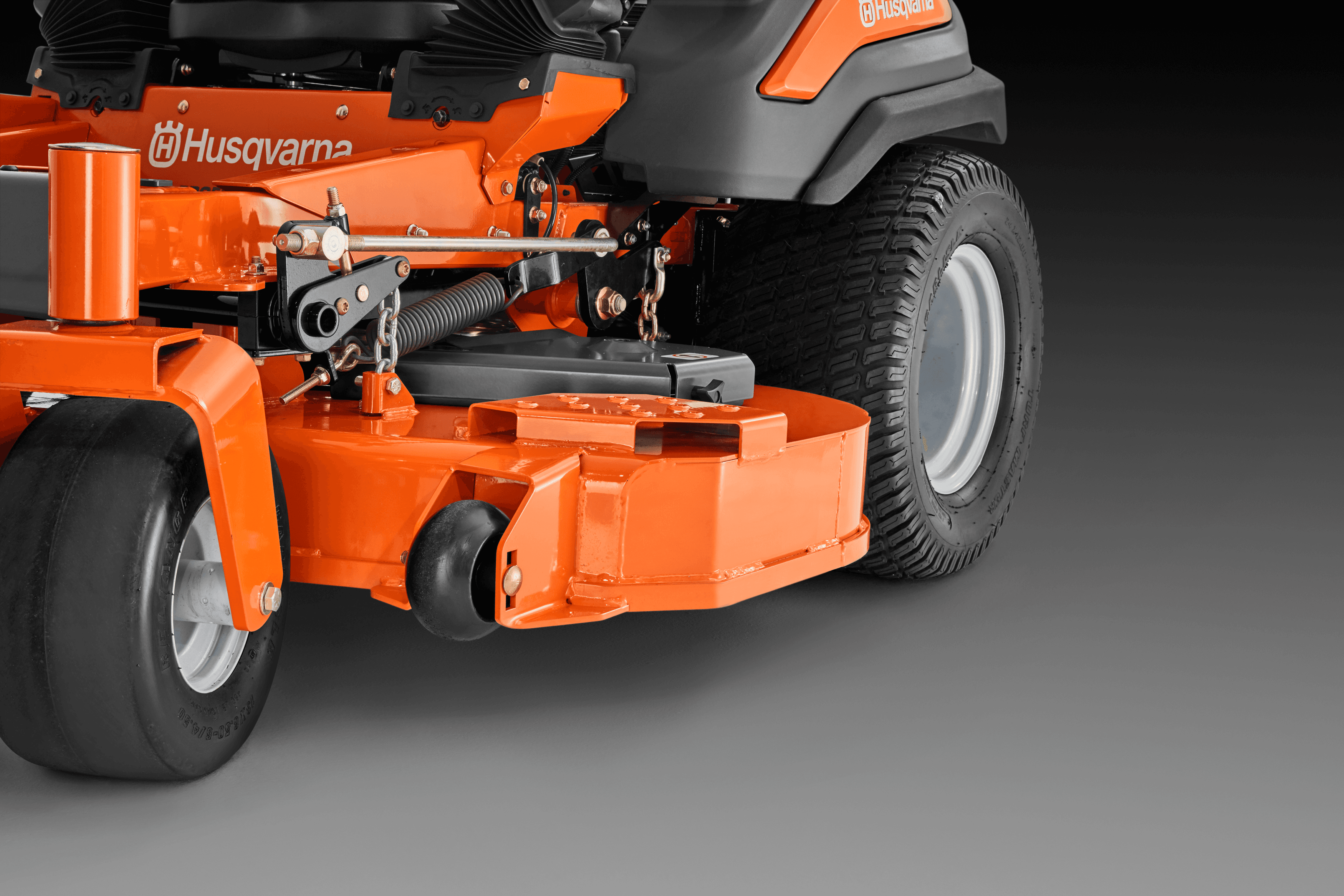

The deck lift system is spring assisted and allows convenient hand free operation. A simple locking pin adjusts cut height. image

Deck height adjustment

Deck height adjustment

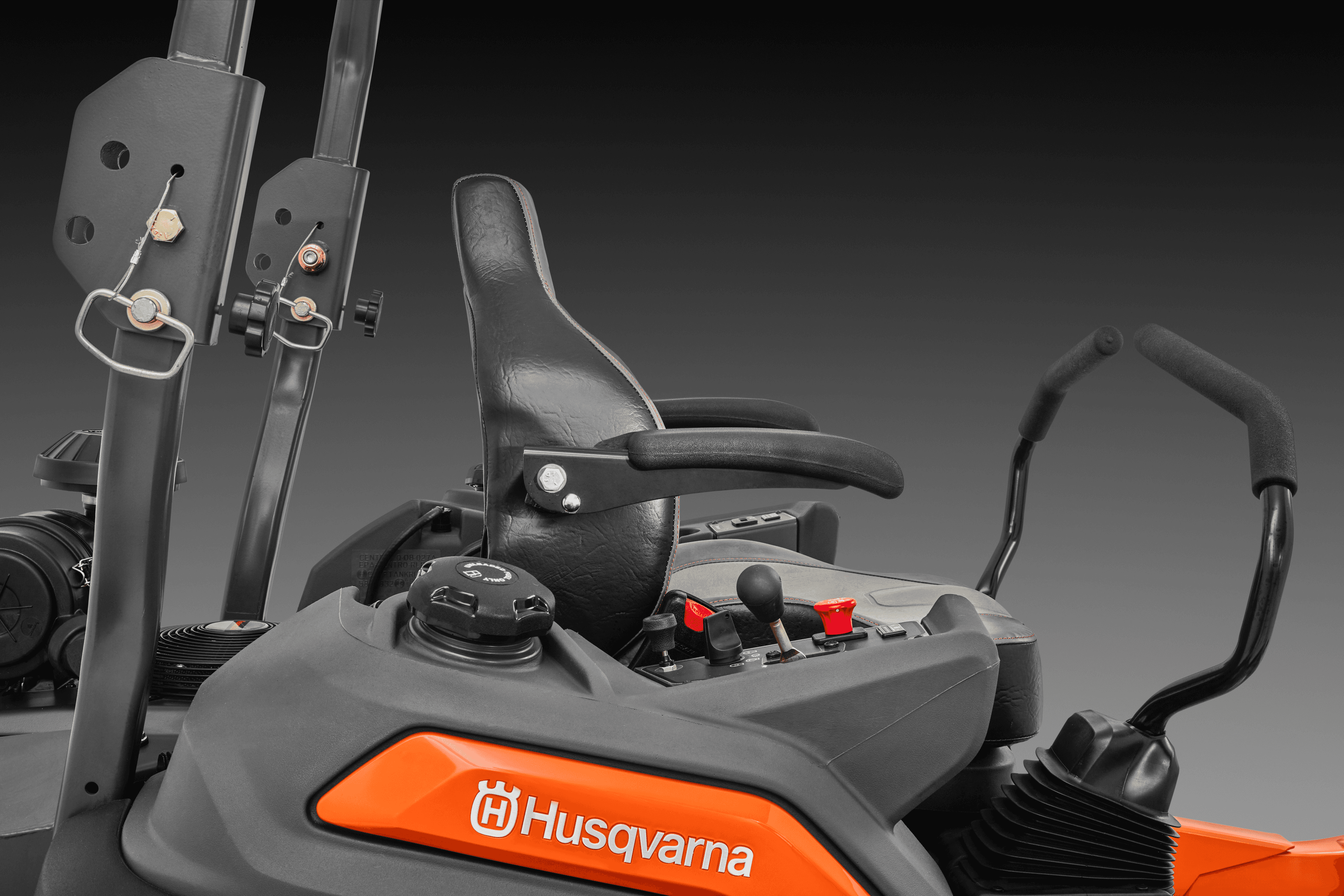

Comfortable, user-focused controls put everything needed to operate the mower within easy reach. image

Ergonomic controls

Comfortable, user-focused controls put everything needed to operate the mower within easy reach.

A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish. image

7 gauge fabricated cutting deck

7 gauge fabricated cutting deck for rapid cut speeds with high quality finish.

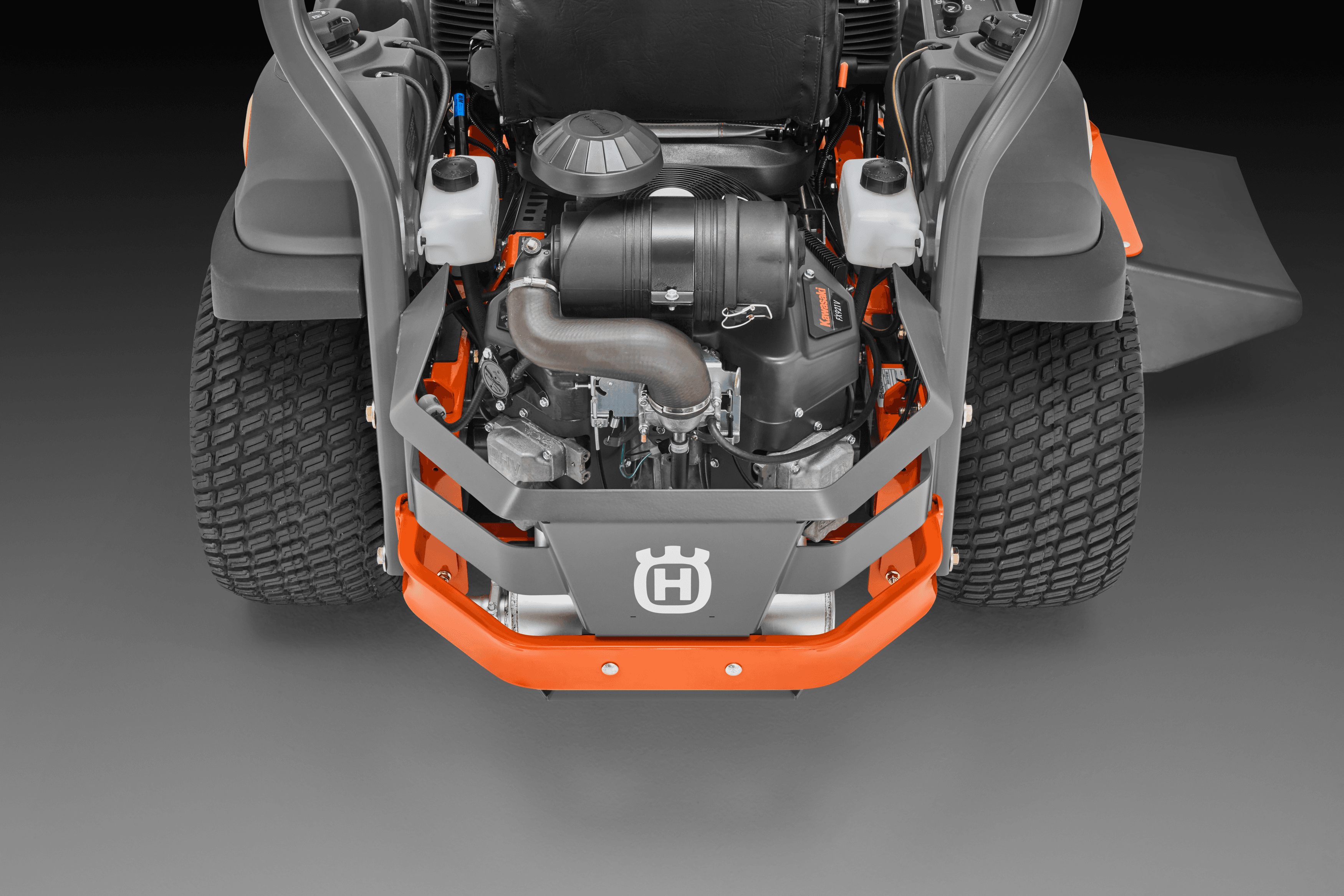

A smaller and more robust battery adopted from the transportation industry provides better reliability, improved longevity and more service space. image

AGM Battery

AGM Battery

The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property. image

Heavy duty rubber discharge chute

The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property.

10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance. image

Cast iron spindles

Cast iron spindles for easy handling of unexpected impacts

The largest and most capable commercial transmission in the line-up that will handle the biggest jobs in landscaping image

HydroGear ZT5400 Transmissions

HydroGear ZT5400 Transmissions handles even the biggest jobs in landscaping

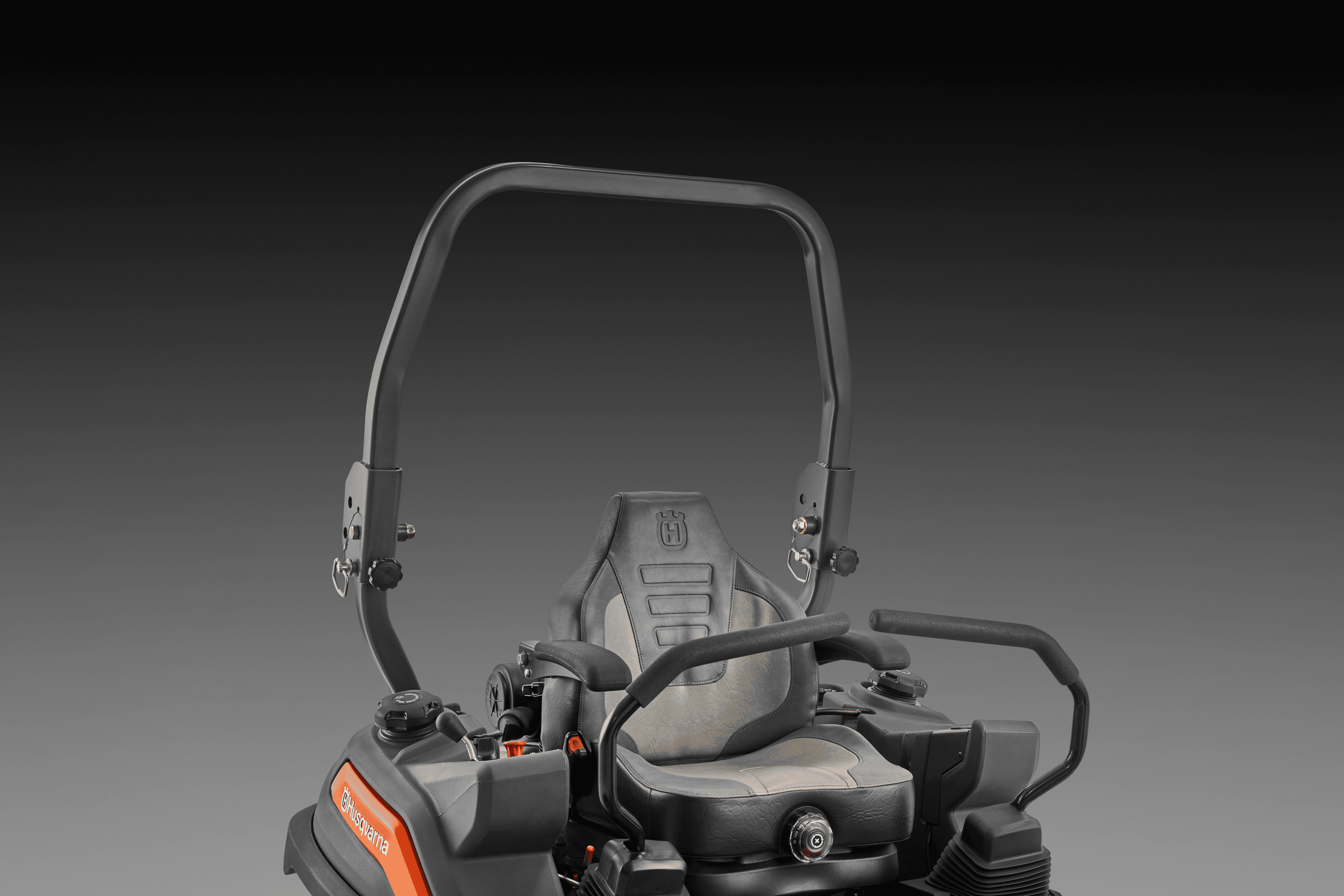

The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance. image

Roll Over Protection System (ROPS)

Easily foldable ROPS protects the user

Twelve gallons of fuel capacity for all-day cutting capability. image

Large fuel capacity

Large fuel capacity

Heavily bolstered cushions combined with a dial by weight full suspension, provide all day comfort for the operator. Added  elastomeric vibration control (EVC) reduces fatigue. image

Premium suspension seat

Premium suspension seat for increased comfort

Specifications

Art No: 967669703
Cutting width152 cm
Power output23.1 kW
Cylinder displacement999 cm³
Weight (complete product w/o side packed articles)594 kg
Fuel tank volume45.4 l
Sound pressure level at operators ear80 dB(A)
Base machine, height117 cm
Base machine, length206 cm
Base machine, width136 cm
Base machine, width (chute down)188 cm
Base machine, width (chute up)161.9 cm
Battery capacity12 Ah
Battery voltage12 V
Blades3 pcs
Blade-tip speed93.98 m/s
Clutch rating338.95 Nm
Cutting height max127 mm
Cutting height min25.4 mm
Deck thickness4.76 mm
Fuel consumption290 g/kWh
Fuel tank volume12 gal (US)
Oil capacity1.9 l
Sound power level, guaranteed (LWA)112 dB(A)
Sound power level, measured112 dB(A)
Speed forward max19.3 km/h
Speed forward min0 km/h
Speed reverse max9.66 km/h
Uncut circle0 cm
Wheelbase127 cm
