Professional Riders

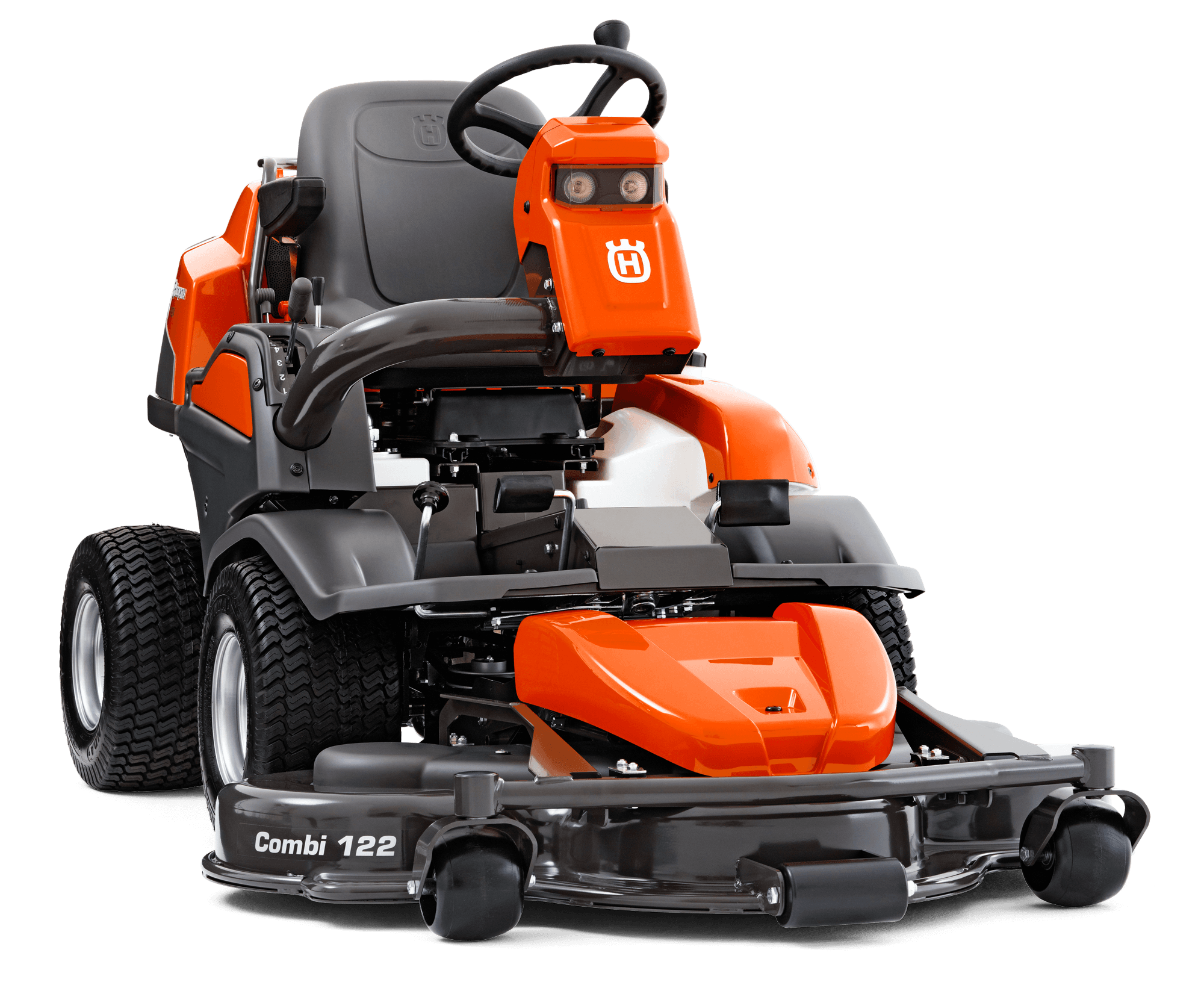

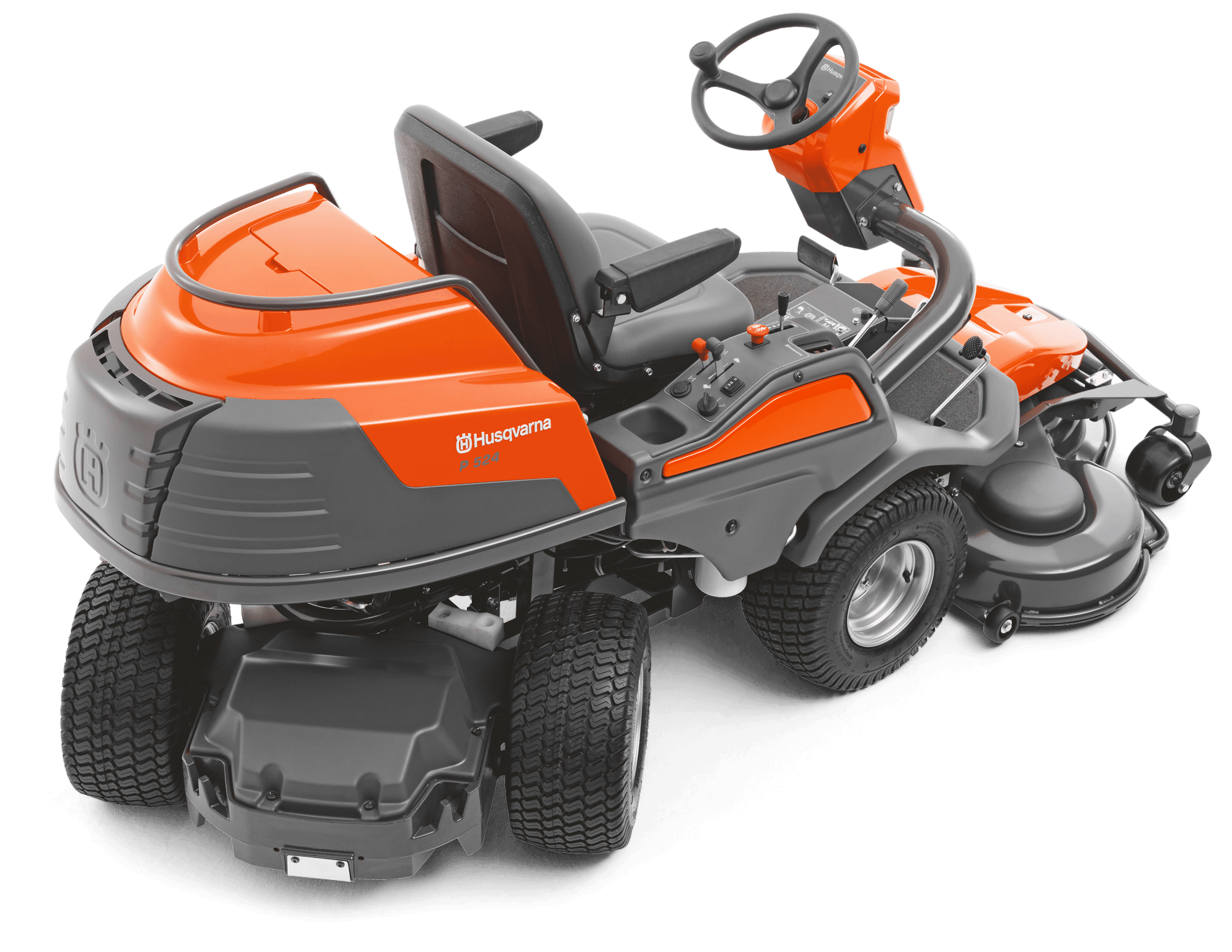

P 524

$21,599.00Rec. retail price incl. GST SKU: 967847901
  • Power/fuel typePetrol
  • Cutting width, min112 cm

Product description

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round. The P 524 can be fitted with either a 112 or 122 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

5-year warrantyFinance options

Product Information

Features (17)

Our patented articulated steering increases driving pleasure by improving manoeuvrability. image

Patented articulated steering

Min. clearance circle by articulated steering

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming. image

Trimming ability

Front-mounted cutting deck for precise trimming

The low profile front-mounted cutting deck gives unbeatable accessibility under fences, bushes, park benches etc. image

Mowing accessibility

Unbeatable mowing accessibility

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability. image

All-Wheel Drive (AWD)

Excellent hillside driving performance

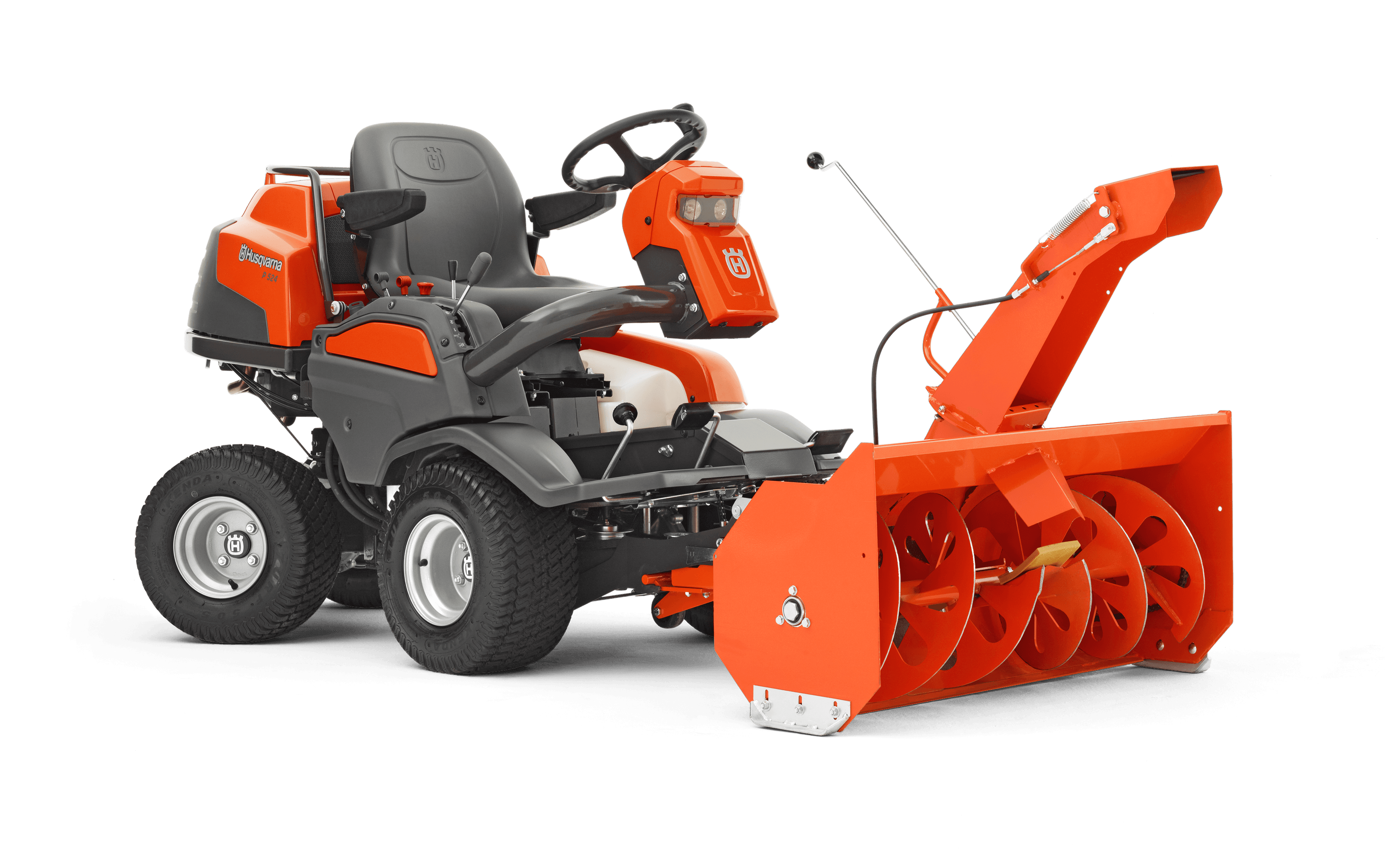

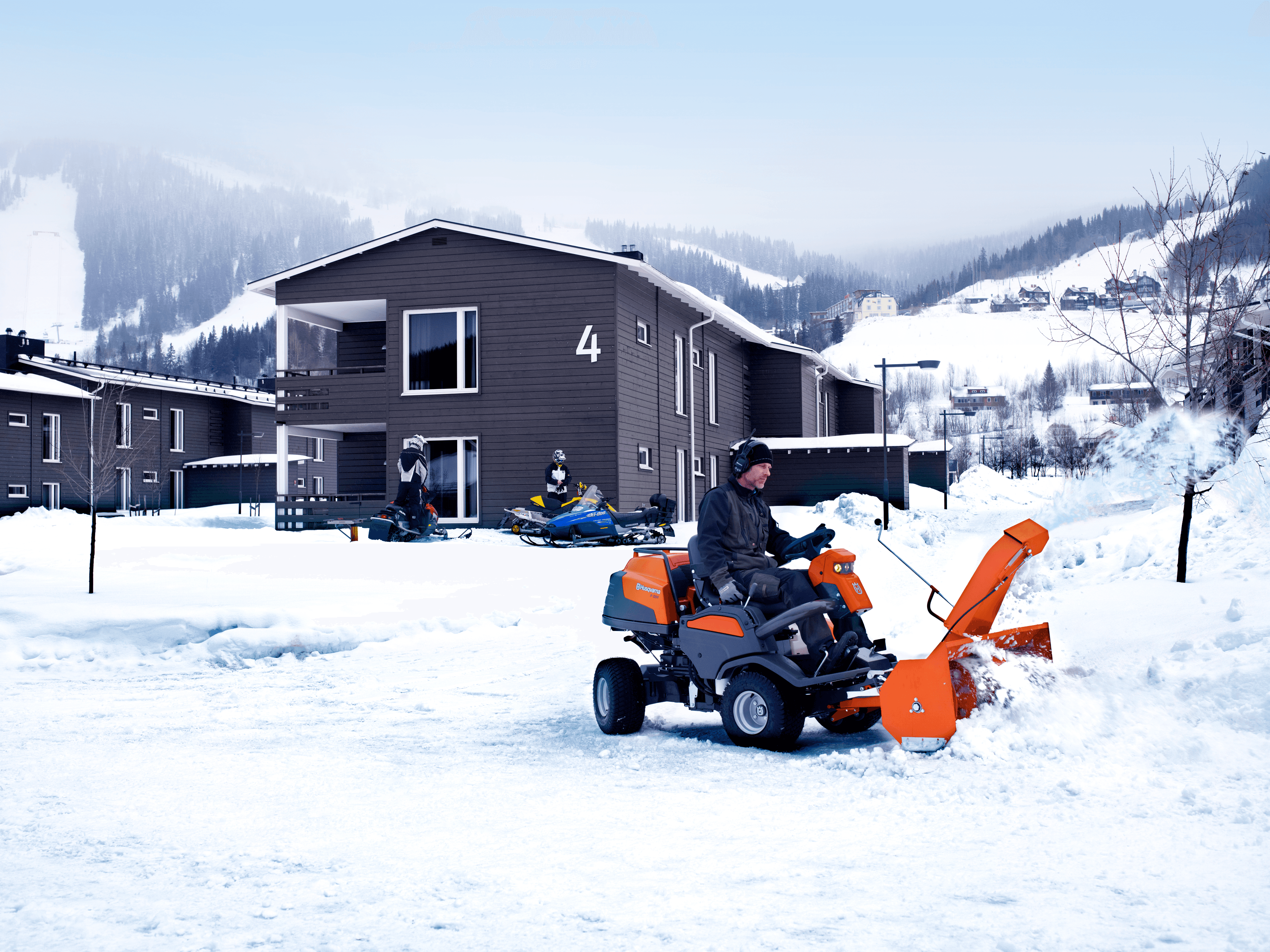

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round. image

Versatile usage

Accessories for versatile year/round usage

Unique quick coupling allows attachments to be changed quickly and efficently without tools. image

Quick coupling

Easy tool exchange by unique quick coupling

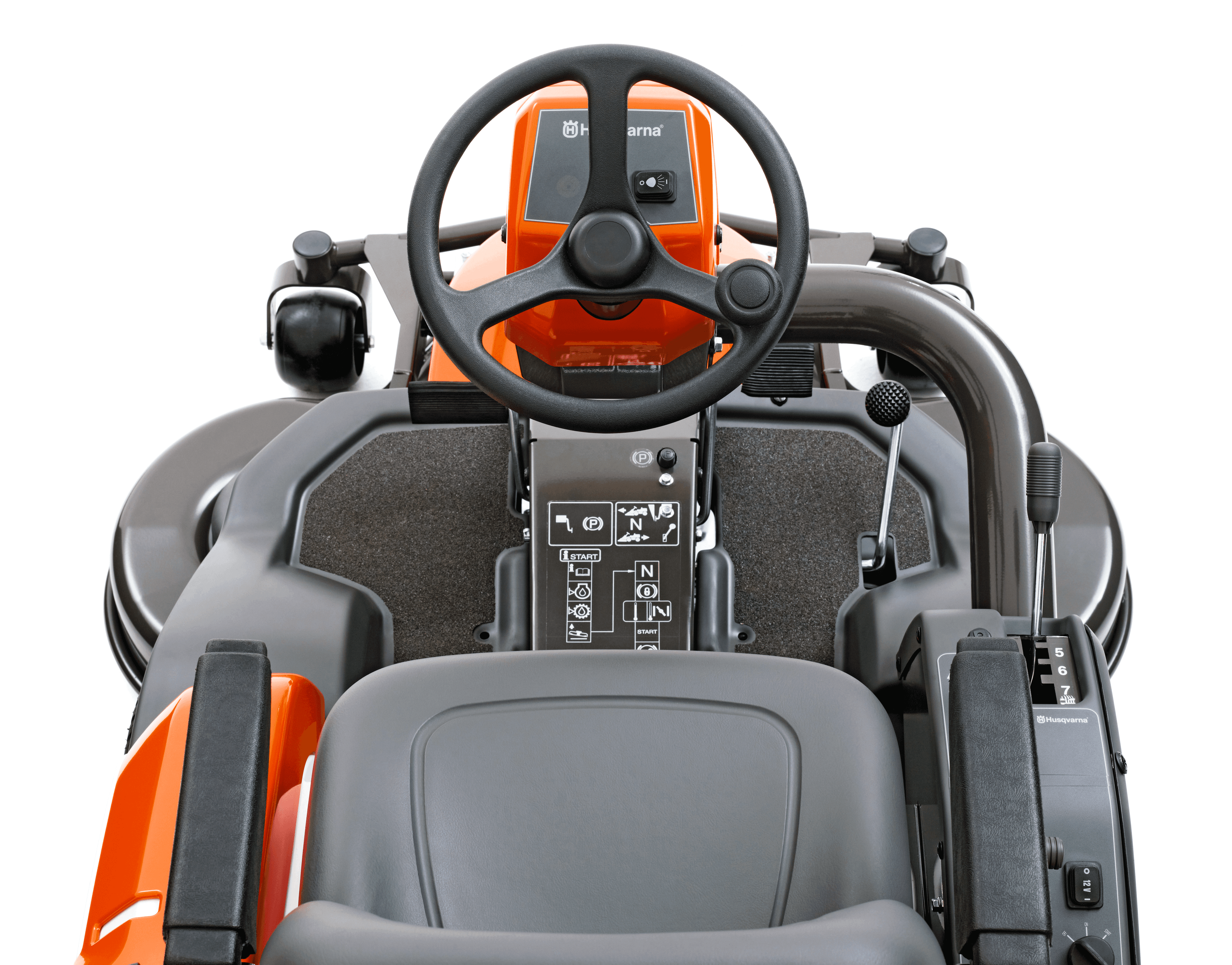

Ergonomic operator’s interface for a comfortable ride during long working hours. image

Ergonomic operation

Ergonomic operator's interface

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous. image

Hydraulic power steering

Hydraulic power steering for increased comfort

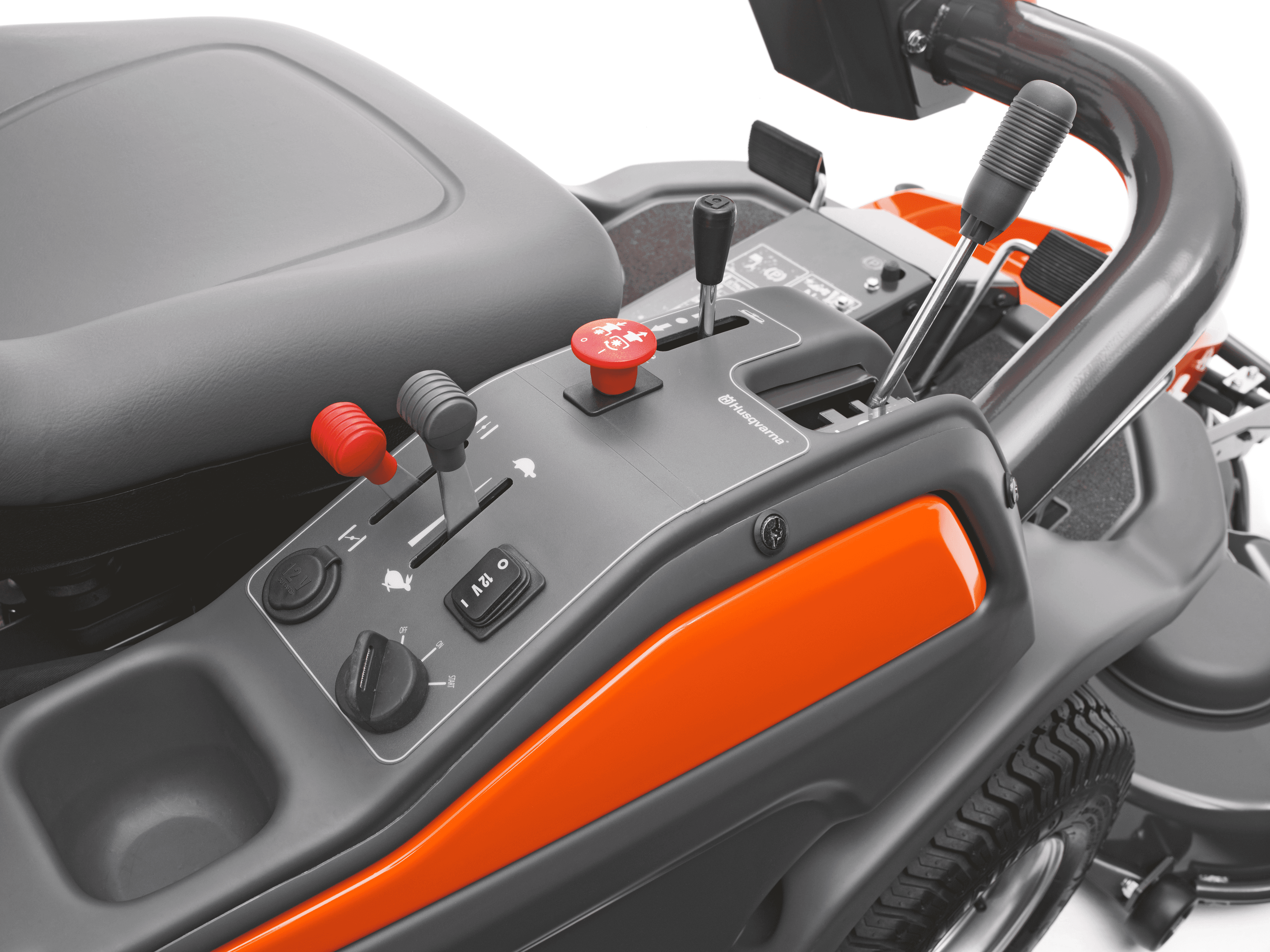

Controls are easy accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

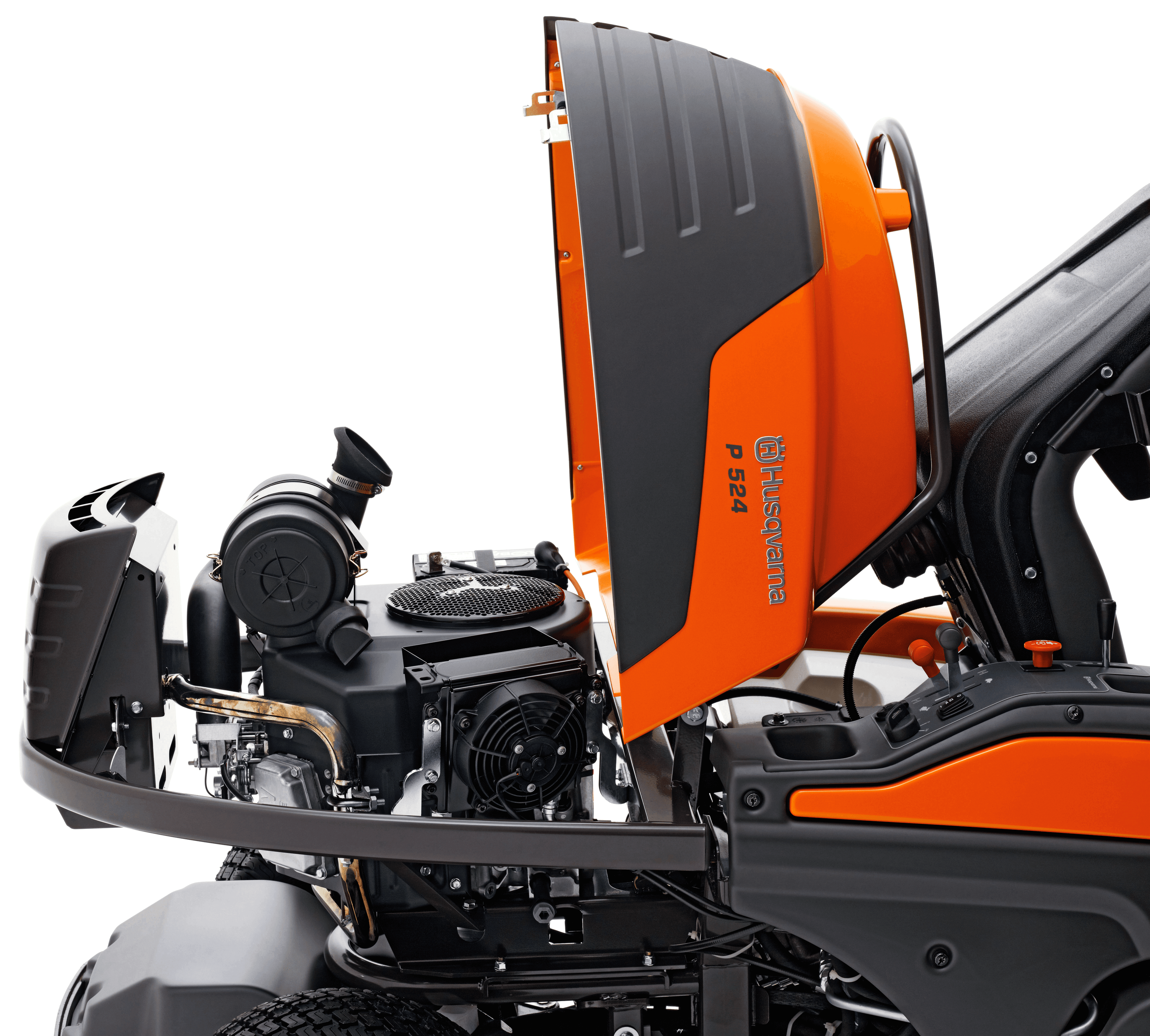

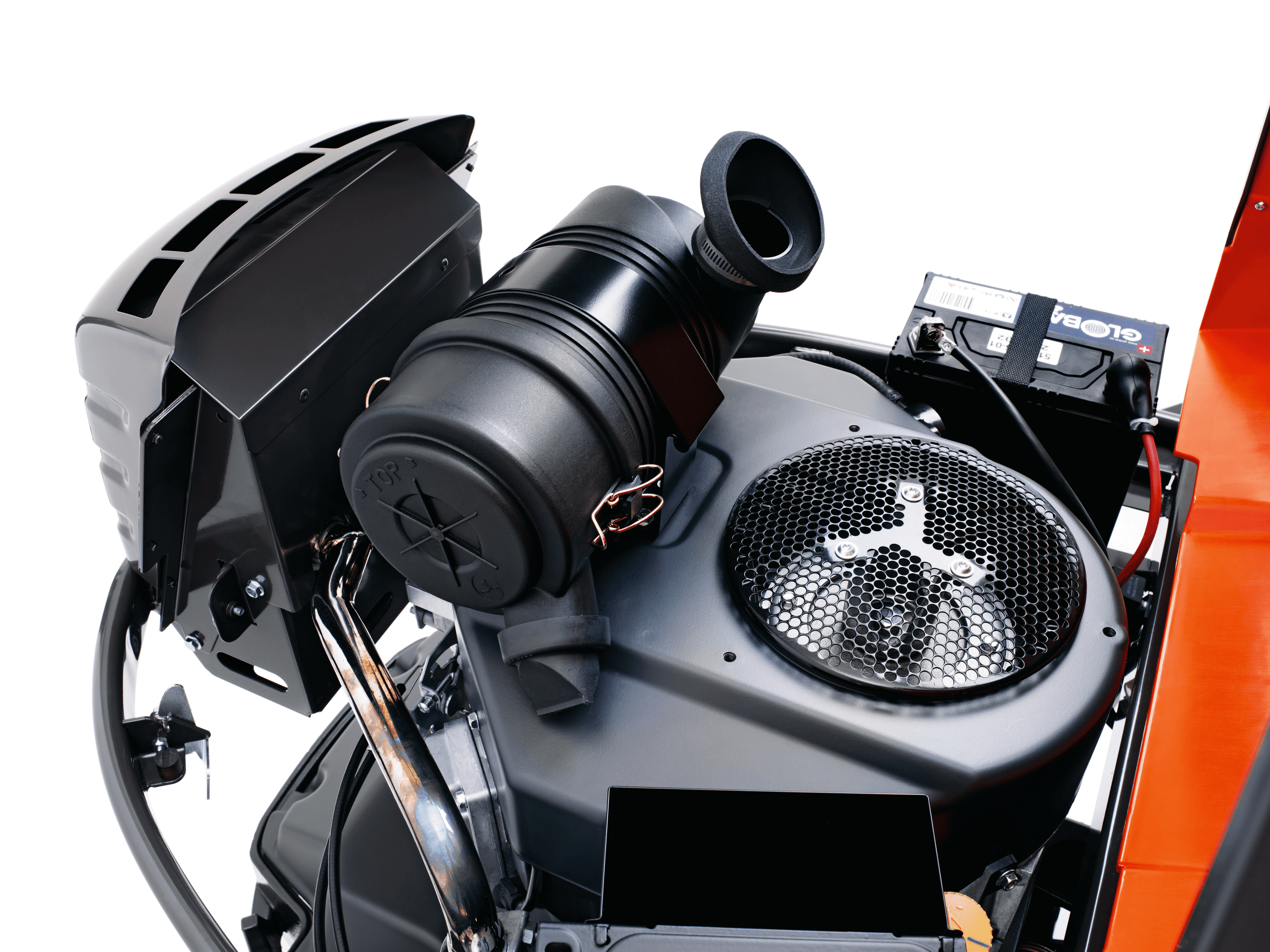

The tilting hood and easily accessible servicing points makes maintenance and servicing easy. image

Tilting hood

Tilting hood makes maintenance quick and easy

For easy maintenance and longer lifetime. image

Greasable mandrels

Greasable mandrels for easy maintenance

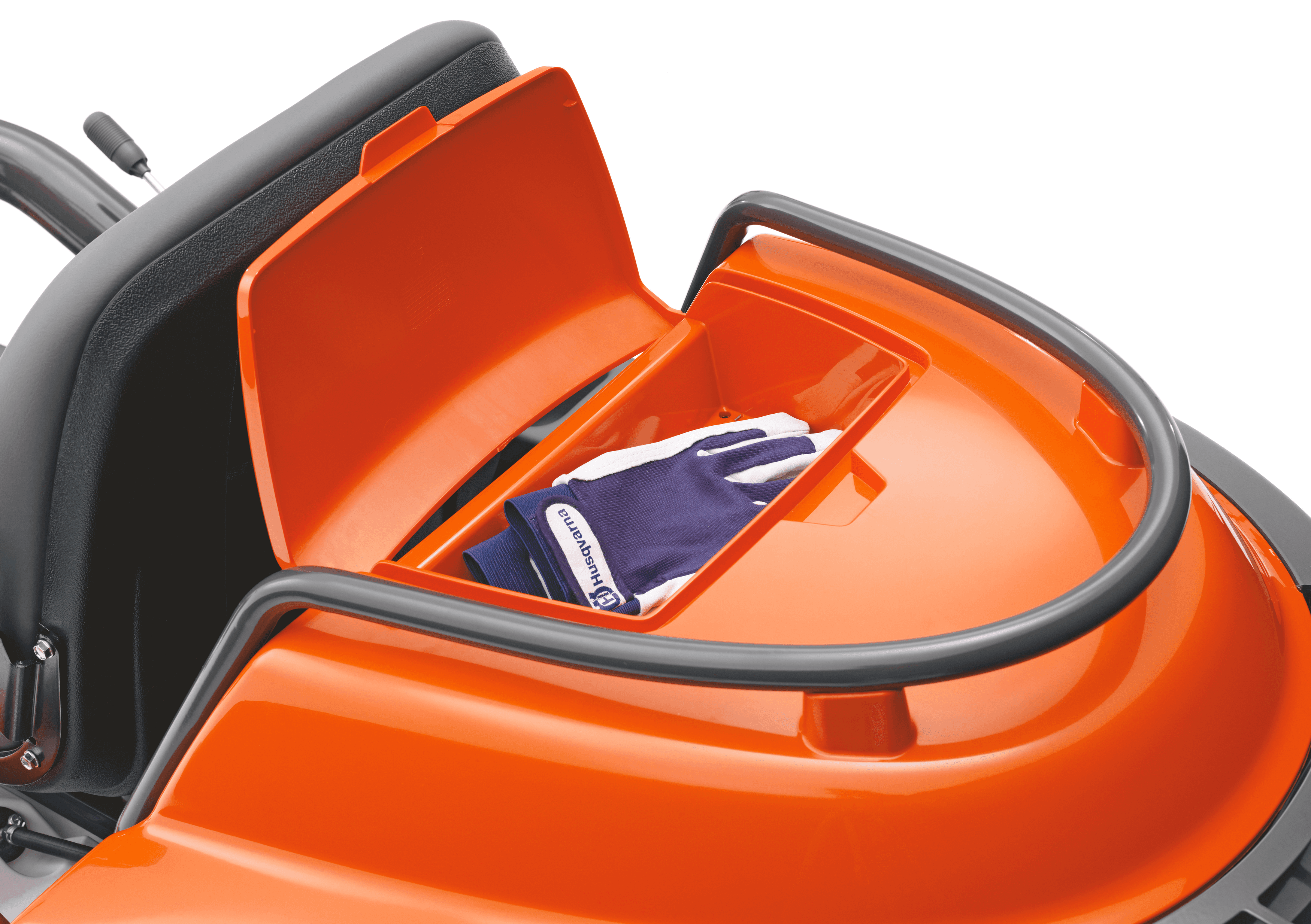

The practical carrier can be used for extra equipment. image

Cargo holder

Practical carrier for extra equipment

Service postion on the cutting deck facilitates cleaning and service. image

Service position

Service position for easy deck maintenance.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability. image

Durable ladder frame

Heavy-duty, durable steel ladder frame

For improved durability the complete rear wagon is one piece of ductile cast iron. image

Cast iron rear wagon

Durable cast iron rear wagon

16 inch wheels both front and back for optimal riding comfort and accessibility. image

16 inch wheels

Equally sized wheels for a comfortable ride

Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote. image

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions.


Art No: 967847901
Power output13.9 kW
Weight (excl. cutting equipment)427 kg
Cylinder displacement726 cm³
Weight (complete product w/o side packed articles)427 kg
Fuel tank volume22 l
Sound pressure level at operators ear88 dB(A)
Base machine, height117.4 cm
Base machine, length205 cm
Base machine, width98 cm
Battery capacity24 Ah
Battery pack weight5.4 kg
Battery voltage12 V
Cutting height max80 mm
Cutting height min25 mm
Cutting width, max122 cm
Cutting width, min112 cm
Deck thickness4 mm
Fuel consumption335 g/kWh
Fuel tank volume5.8 gal (US)
Gross weight towed200 kg
Ground clearance105 mm
Net power at preset rpm3000 rpm
Net power at preset rpm Energy13.9 kW
Sound power level, guaranteed (LWA)104 dB(A)
Sound power level, measured102 dB(A)
Speed forward max13 km/h
Speed reverse max9 km/h
Uncut circle50 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel3 m/s²
Wheelbase100 cm
